TIMED INTERVAL SAMLING (TIS)

TIS Case Study of 500 HP DC Induction Motor

NGP (National Green Products) measures real-time performance of USES®XL Systems using Timed Interval Sampling (TIS) testing techniques to verify customers are achieving the energy cost savings and load efficiencies contained in the customer’s USES® XL System “Performance Specification”.

The following information describes the TIS Case Study which generated the resulting TIS graphs in the left margin:

  • The six (6) TIS case study graph tabs in the left column show undisputable energy cost savings and increased operational efficiency as (3) USES® XL-3D-480V modules connected to a 500 HP DC induction motor load were switched ON and OFF in 5-minute increments.
  • The six (6) TIS graph results were recorded by a TIS data logging meter whose test probes (voltage and current transducers) were connected to 3-phase 480V 800A conductors on the load side of the Motor Control.
  • The USES® XL breaker subpanel and (3) USES® XL modules are 20’ away from the Motor Controller which is 20’ away from the 500 HP DC Motor load.
  • The MDP 800A main breaker for the 500 HP Motor is located in the electrical room 200’ away from the Motor Controller and (3) USES® XL modules.
Person working with electronic equipment and a laptop on a table.
TIS Data Logging Meter Connected to MDP in Electrical Vault

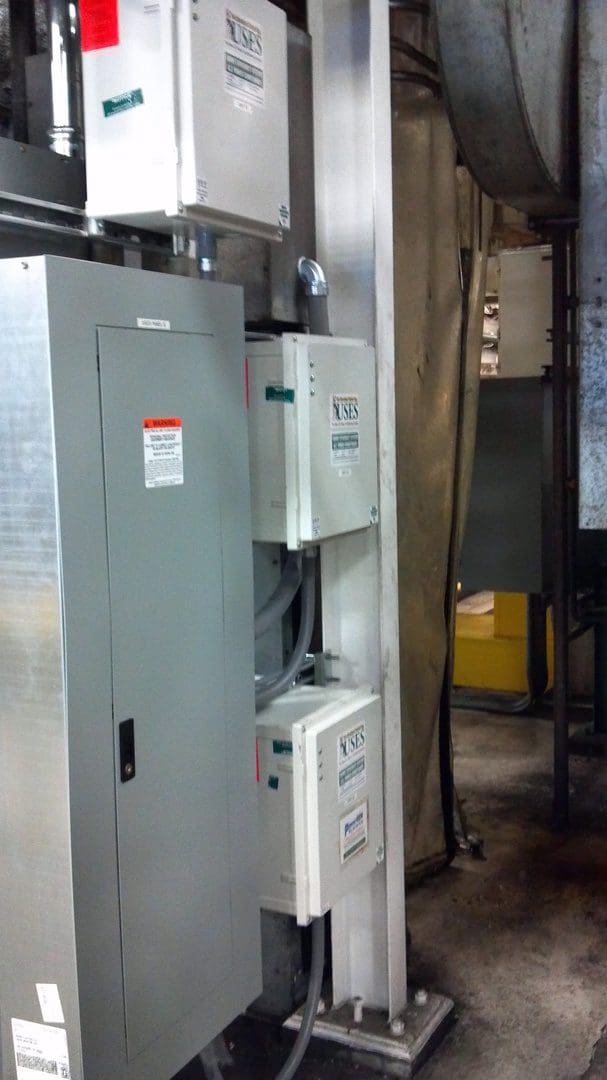

Industrial electrical control panels with warning labels in a utility room.

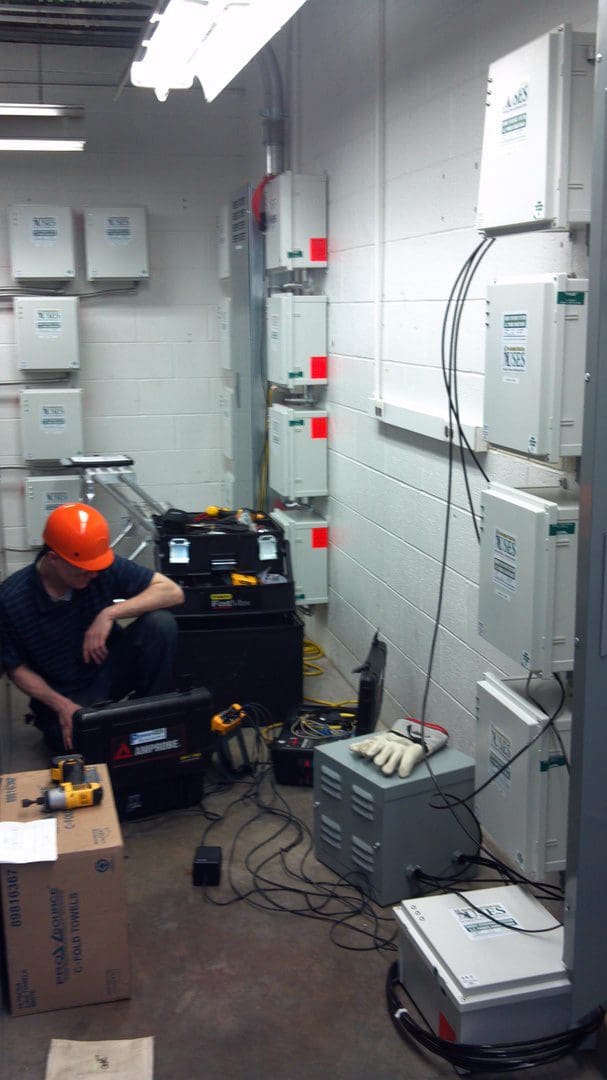

Technician working on electrical equipment in a utility room.

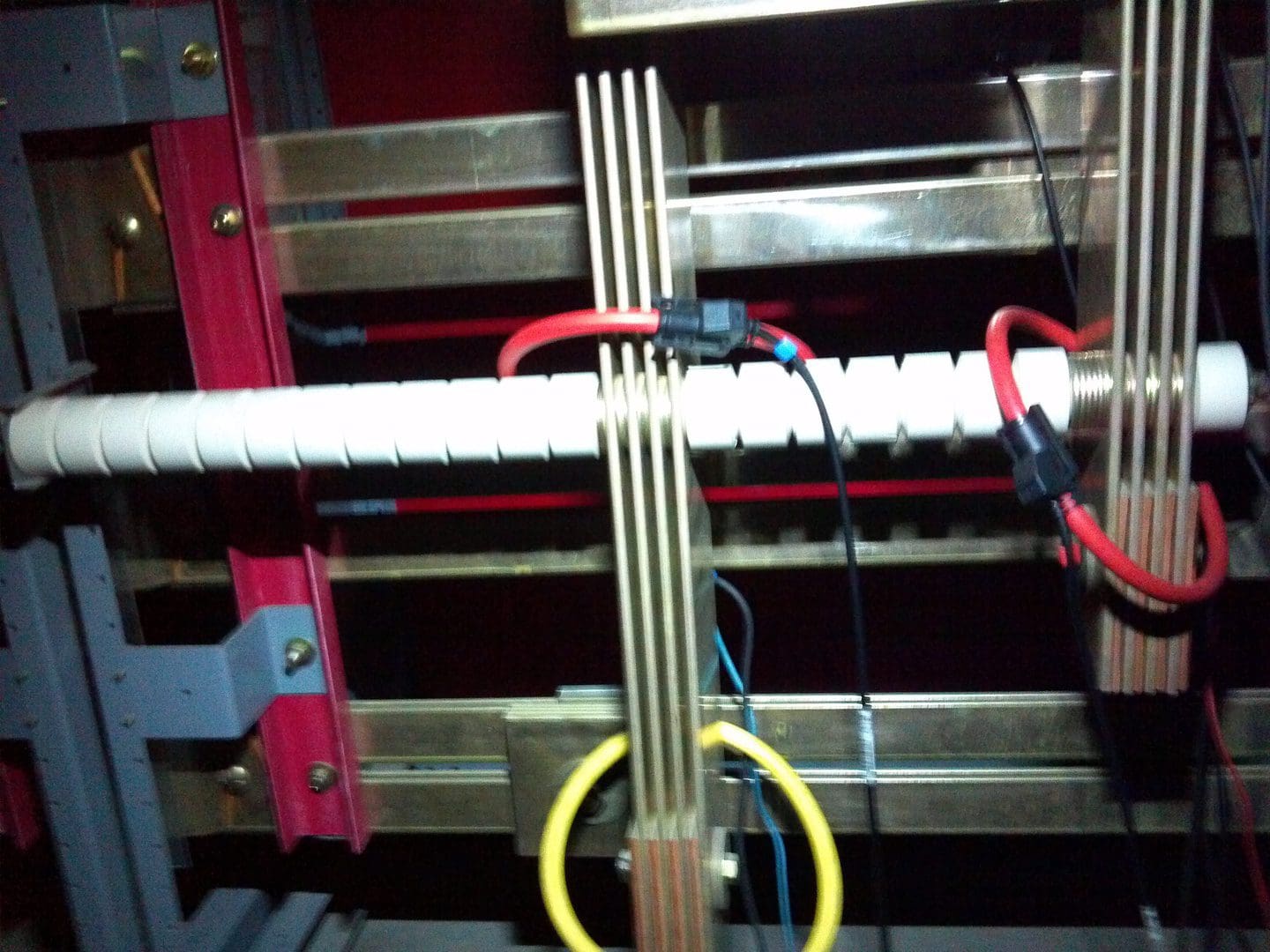

Close-up of electrical wiring and conduit pipes inside a panel.

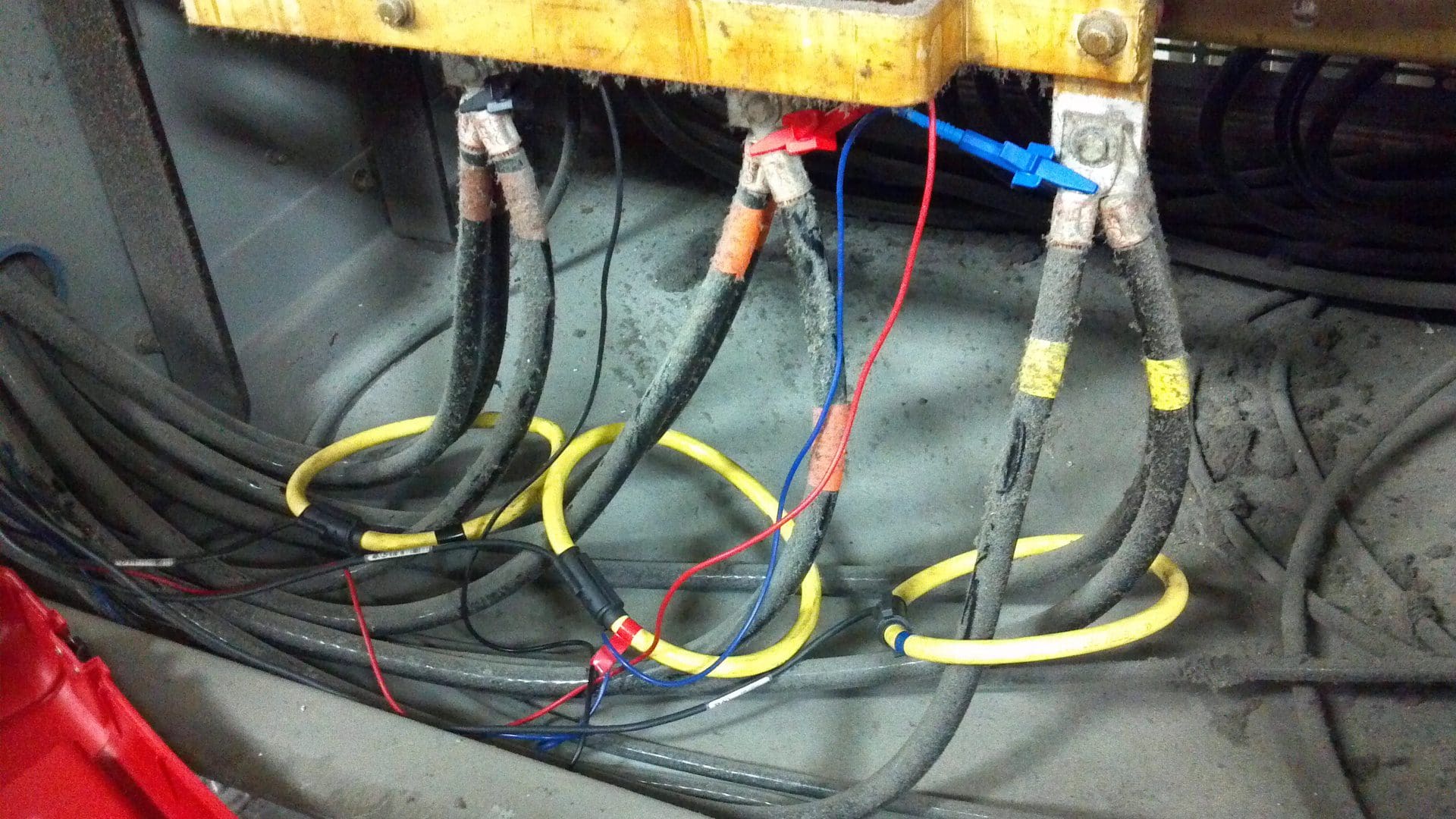

Close-up of electrical cables connected to a panel.

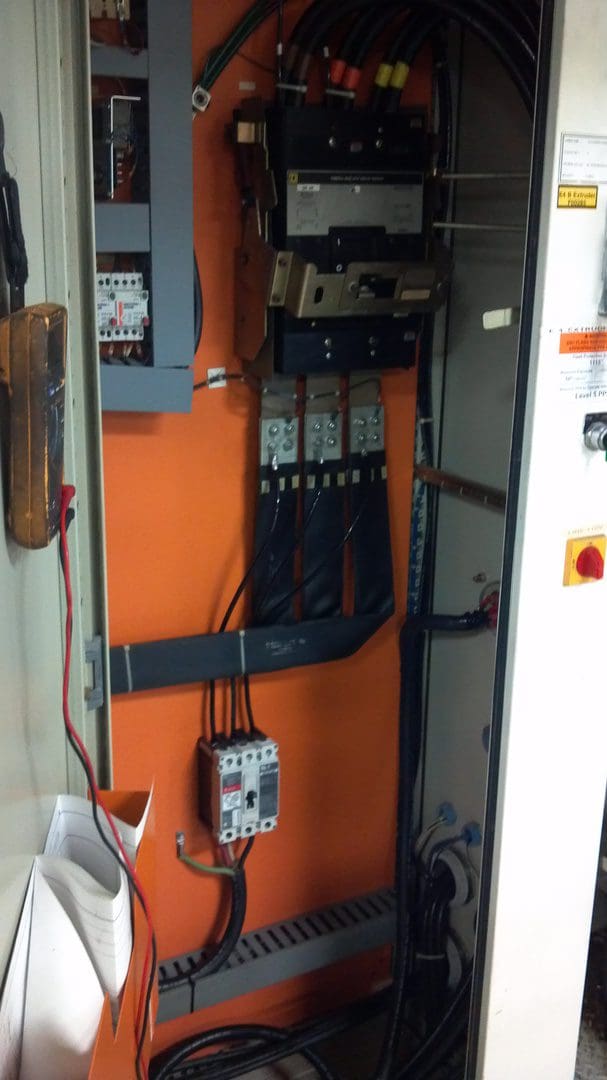

Electrical panel with circuit breakers and wiring inside an orange enclosure.

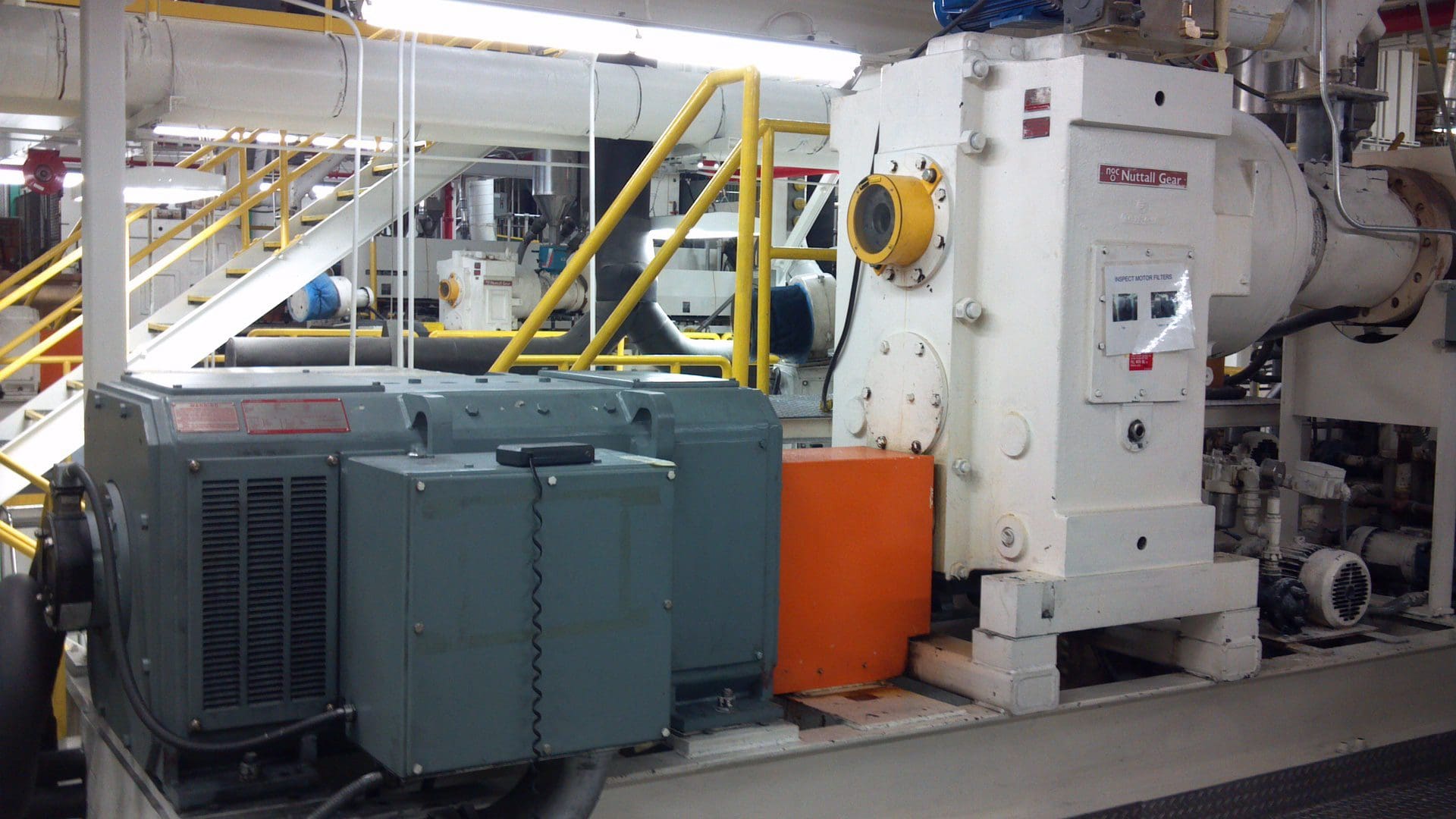

Industrial machinery with yellow railings and large electrical components.

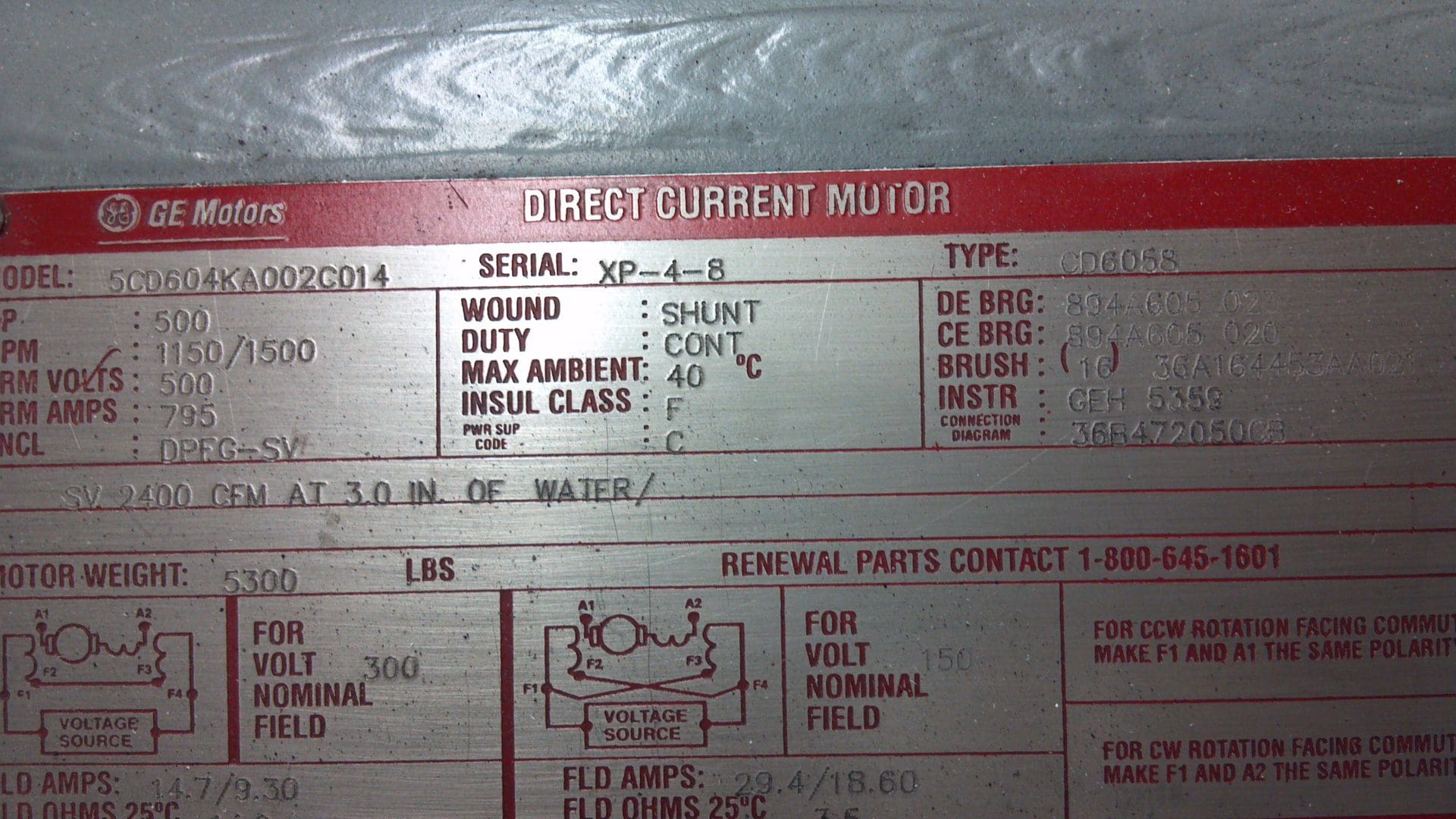

Close-up of a metal machinery nameplate with technical specifications and serial information.
